How to replace a Foldaway attic ladder lid where the attic ladder is not installed. Models: FT30, FA30, FTW30
Step 1

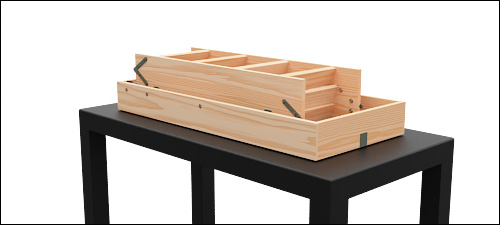

Place the attic ladder on a table or workbench so the lid is sitting on the surface.
Step 2

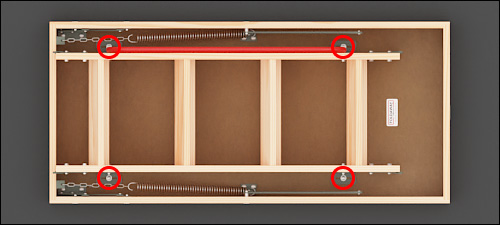

Remove the 4x screws in the brackets that connect the ladder to the lid.
Step 3
Move the ladder and brackets to the side out of the way.
Step 4

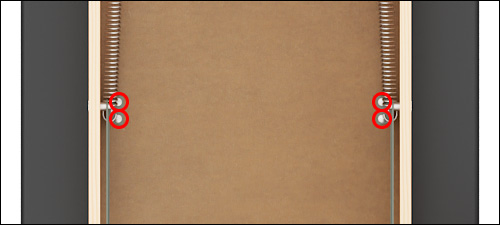

Remove the 4x screws that connect the stay arms to the lid.
Step 5

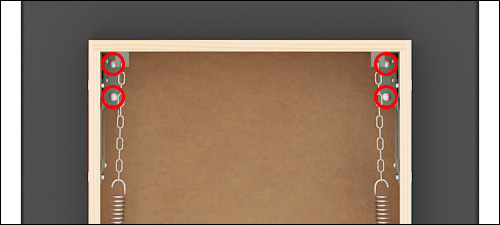

Remove the 4x screws that connect the left and right main hinges to the lid.
Step 6

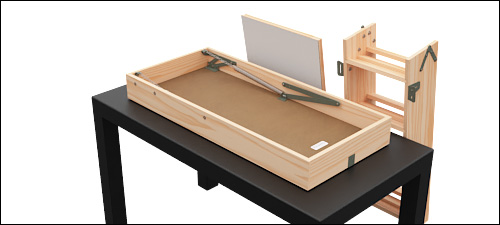

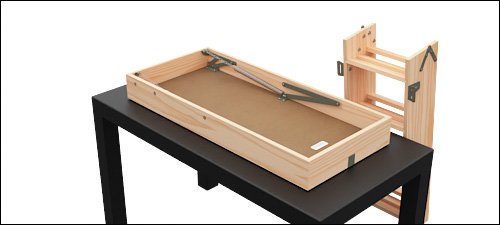

Remove the old lid and place the replacement lid in the same position.
Step 7
Refix the 4x screws that connect the left and right main hinges to the lid using the predrilled holes.
Step 8
Refix the 4x screws that connect the stay arms to the lid using the predrilled holes.
Step 9
Place the ladder and brackets onto the new lid and refix the 4x screws into the lid using the predrilled holes.
