How to replace a Sellwood attic ladder lid where the attic ladder is not installed. Models: P30, D28, D30, D36, Q24, A25, A28, A36
Step 1

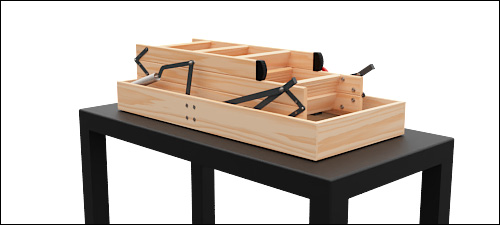

Place the attic ladder on a table or workbench so the lid is sitting on the surface.
Step 2

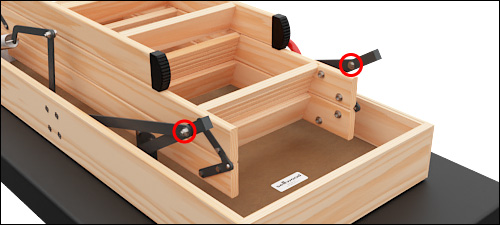

Release the spring tension by undoing the 2x M8 bolt and nylock nuts that connect the upper and lower stay arms together.
Step 3

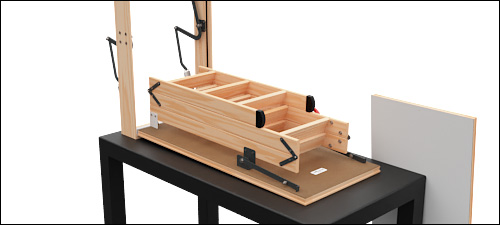

Lift the attic ladder frame so it sits in a vertical position perpendicular to the workbench.
Step 4

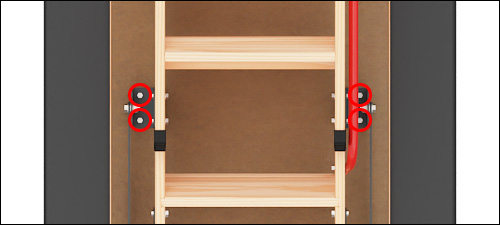

Remove the 4x M6 screws that connect the lower anchors to the lid.
Step 5

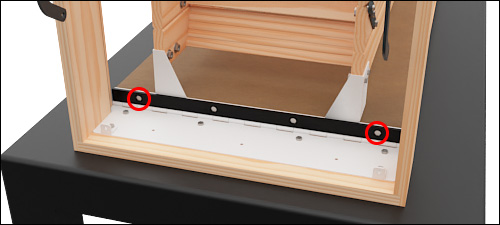

Remove the 4x M6 screws that connect the main hinge to the lid.
Step 6

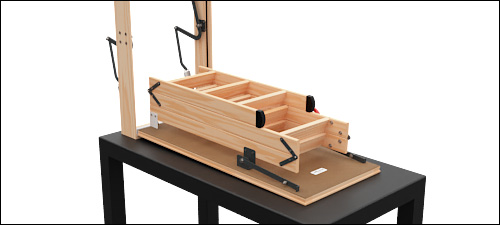

Remove the old lid and place the replacement lid in the same position.
Step 7
Refix the 4x M6 screws that connect the main hinge to the lid starting with the outside predrilled holes first.
Step 8
Refix the 4x M6 screws that connect the lower anchors to the lid.
Step 9
Close the attic ladder frame and reconnect the upper and lower stay arms together.
